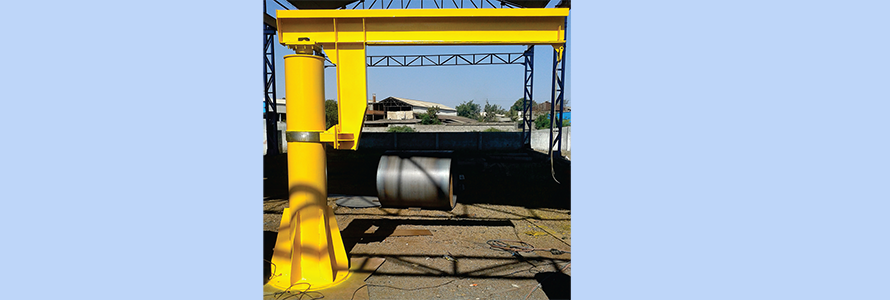

JIB Cranes
Pillar and wall-mounted are versatile efficient and cost effective solution for moving material within an individual work station for transferring materials from within work area for serving as auxiliary lifting devices under overhead cranes. JIB CRANES, with a wide range of sizes and designs, these cranes can be adapted to provide the optimum solution for the most varied requirements in terms of load capacity, swing range, outreach and features - even including cranes with two jibs.
| Technical Specifications | |
|---|---|
| Safe Working Load | 250 Kgs to 3 Tons |
| Span | Up to 5 m |
| Heights of Lift | As per Customer Applications |
| Swing | 360 Degrees |
| Class of Duty Standards | Equivalent to M3, M5 as per standard IS 15419 |
| Speeds | Selected depending on client specifications / applications / dimensions |
| Crane Control | From floor through Pendant Push Buttons Radio Control (optional) |
| Drive System | Through Squirrel Cage induction motors with totally enclosed, grease immersed, Spur Gear Box |
| Motors | Crane Duty motors for Main Hoisting, Cross Travel and Swing |
| Brakes | Disc Brakes for all motions. DC/AC Electro Magnetic Brakes or additional brakes can be provided on request |
| Power Supply System | To Hoist and Cross Travel through Trailing Cables or Drag Chain |
