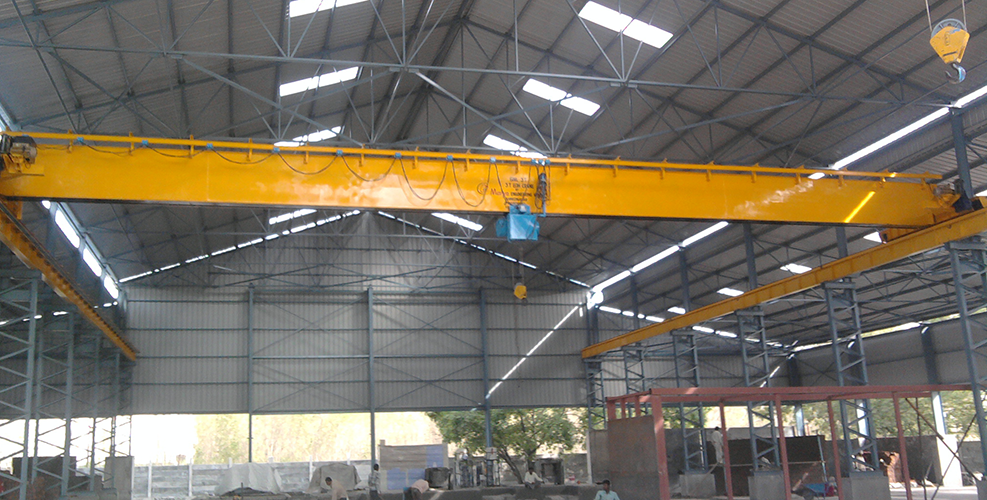

Single Grider Overhead EOT Cranes
SINGLE GIRDER OVERHEAD EOT CRANES feature maximum rigidity for a minimum dead weight. This keeps the load on the crane runway low and a cost-effective design can be selected for the building. They also offer the benefits of outstanding crane geometry, resulting in exceptional travel characteristics enabling the crane to meet your requirements for higher efficiency.
| Technical Specifications | |
|---|---|
| SWL | 250 Kgs. to 20 Tons. |
| Span | 6m to 30m |
| Heights of Lift | As per Customer Applications |
| Class of Duty/Standards | Equivalent to M5, tA7, M8 as per IS: 3177/IS: 807 Classification. |
| Speeds | Selected depending client specifications / applications /dimensions |
| Crane Control | From floor through Pendant Push Buttons. Optionally through Radio Remote Control |
| Drive System | Twin Drive through Squirrel Cage Induction Motors with Oil/grease lubricated Helical Gear Boxes with Fail Safe Brakes |
| Motors | Squirrel Cage Induction Hoisting Motors for Hoisting, Cross Travel as well as Long Travel. Insulation all motors 'F' Class with 40% CDF S4 Duty |
| Brakes | Electro Hydraulic Thrusters / Disc Brakes for all motions. DC/AC Electro Magnetic Brakes or additional brakes can be on request. |
| Power Supply System | To Hoist and Cross Travel through Trailing Cables/Drag. To Crane through Shrouded Bus Bars/Trailing Cable MS Iron Conductors/Bare Copper Conductors (depending on customer's choice and application) |
