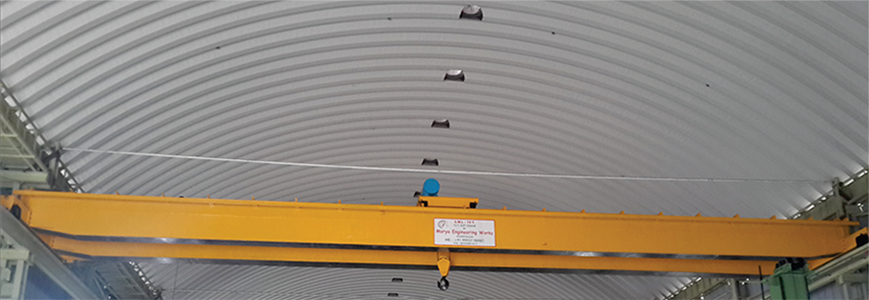

Double Grider Overhead EOT Cranes
Double Grider Overhead EOT Cranes offer you a virtually unmatched deadweight/load capacity ratio. They are also characterized by their outstanding crane geometry, ensuring extremely favorable travel characteristics and therefore minimizing wear. The particularly large lifting height is derived from the fact that the load hook can be raised between the two crane girders. Depending on requirements, our double-girder overhead traveling cranes can also be fitted with radio or operator cabin controls. Optional maintenance platforms and accessible crabs not only make crane maintenance but also ensure that your hall fittings such as lamps, heating elements or supply lines can be quickly and easily reached.
| Technical Specifications | |
|---|---|
| Safe Working Load | 1 Ton to 50 Tons |
| Span | 6m to 40m |
| Heights of Lift | As per Customer Applications |
| Class of Duty/Standards | M5, M7, M8 as per IS: 31 77 / IS: 807. Also available as per any other applicable international standards |
| Speeds | Selected depending on client specifications / applications / dimensions |
| Crane Control | From floor through Pendant Push Buttons. Open Cabin / Totally enclosed Cabin (Optional) Radio Control (Optional) |
| Drive System | Single / Twin Drive through Squirrel Cage / Slip Ring Induction Motor through totally enclosed, oil immersed/grease lubricated Helical Gear Box |
| Motors | Crane Duty motors for Main Hoisting, Auxiliary Hoisting, Cross Travel and Long Travel |
| Brakes | Electro Hydraulic Thrusters / Disc Brakes for all motions. DC/AC Electro Magnetic Brakes or additional brakes can be on request. |
| Power Supply System | To Hoist and Cross Travel through Trailing Cables or through Drag Chains. To Crane through Shrouded Bus Bars/Trailing Cable MS Iron Conductors/Bare Copper Conductors (depending on customer's choice and application) |
